Friction Screw Press D/S with Pneumatic Operating System
Pneumatic FRICTION SCREW PRESS DOWN STROKE

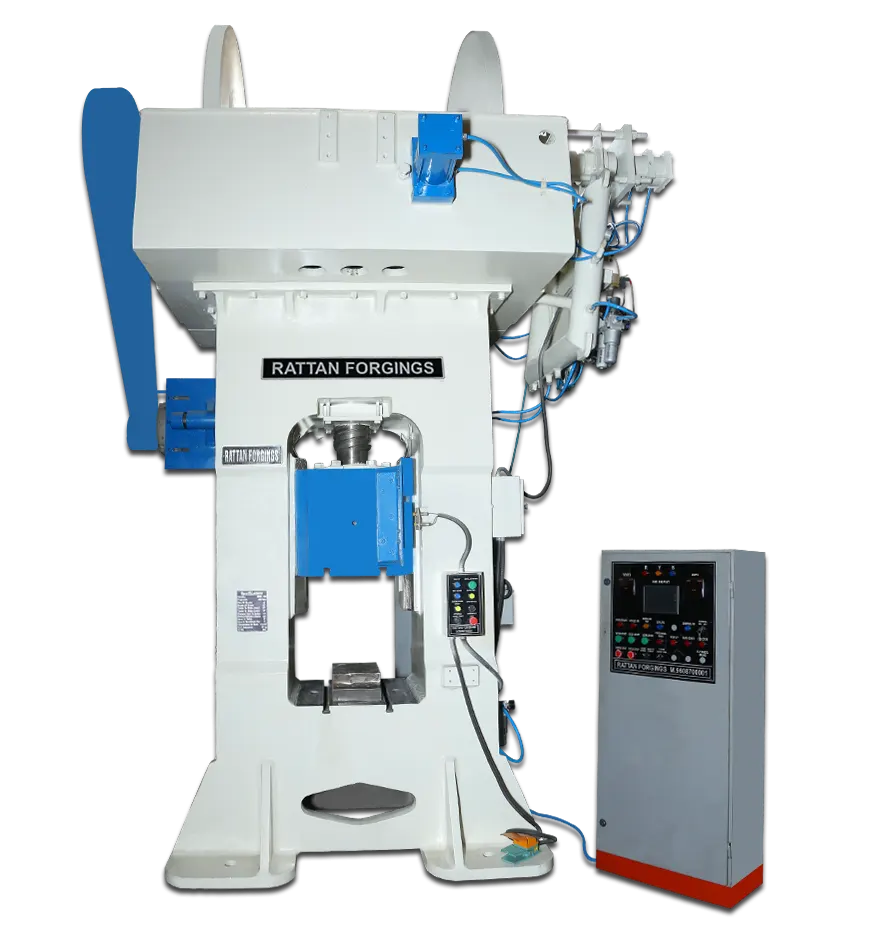

Pneumatic Friction Screw Press
Since our inception, we are engaged in manufacturing a sophisticated, reliable, efficient and precise array of Pneumatic Friction Screw Press for Hot Forging of Steel, Brass, Aluminium and many other Alloy Steel. Depending upon the tooling employed on a press, it meets different needs of Hot Forgings of Non-Ferrous, Steel, Brass, Aluminium Stamping’s and Piercing Operations. One can use these Moreover, our Friction Screw Press can be availed from us in various customized options. Pneumatic Friction Screw Presses are very simple in operation and their stroke can be achieved pressing a Switch provided on the left or foot pedal as per customer choice.
We Manufacture Pneumatic Friction Screw Presses from 50 Tones to 800 Tones capacity. Their design’s beauty is that can give 1/2″ stroke with full press force. Moreover any type of ejection arrangements can be supplied along with press against specific requirements.
FRICTION SCREW PRESS DOWN STROKE WITH PNEUMATIC OPERATING SYSTEM
Specification of Friction Screw Press Down Stroke with Pneumatic Operating System
|
MODEL
|
RFSP-50
|
RFSP-100
|
RFSP-200
|
RFSP-300
|
RFSP-400
|
RFSP-500
|
RFSP-600
|
RFSP-800
|
|
CAPACITY IN TONS
|
50 tons
|
100 tons
|
200 tons
|
300 tons
|
400 tons
|
500 tons
|
600tons
|
800tons
|
|
DIA OF SCREW (mm)
|
102
|
127
|
165
|
203
|
254
|
279
|
305
|
330
|
|
STROKE OF PRESS (mm)
|
203
|
279
|
356
|
406
|
457
|
508
|
559
|
660
|
|
STROKE PER MINUTE
|
40
|
25
|
20
|
15
|
10
|
10
|
10
|
8
|
|
TABLE TO SLIDE (MAX.)
|
356
|
457
|
559
|
635
|
711
|
813
|
889
|
966
|
|
TABLE TO SLIDE (MIN.)
|
152
|
178
|
203
|
229
|
254
|
305
|
335
|
458
|
|
SIZE OF TABLE (FRONT) (mm)
|
406
|
508
|
584
|
660
|
737
|
889
|
914
|
965
|
|
SIZE OF TABLE (SIDE) (mm)
|
356
|
457
|
559
|
610
|
711
|
889
|
965
|
915
|
|
DISTANCE TABLE TO GUIDES (mm)
|
152
|
203
|
254
|
305
|
356
|
406
|
457
|
508
|
|
DISTANCE BETWEEN COLUMNS (mm)
|
406
|
508
|
584
|
660
|
762
|
813
|
864
|
965
|
|
DISTANCE BETWEEN GUIDES (mm)
|
305
|
356
|
432
|
483
|
559
|
610
|
660
|
762
|
|
BORE IN TABLE (mm)
|
76
|
102
|
127
|
152
|
152
|
152
|
178
|
152
|
|
BORE IN RAM (SHANK DIA)
|
38
|
51
|
64
|
76
|
76
|
102
|
101
|
125
|
|
DIMENSIONS OF RAM (mm)
|
305 X 305
|
356 X 356
|
432 X 432
|
483 X 483
|
533 X 559
|
610 X 610
|
660X660
|
762X762
|
|
THICKNESS OF BED PLATE
|
89
|
102
|
127
|
152
|
152
|
178
|
152
|
203
|
|
T SLOTS IN TABLE (mm)
|
16
|
16
|
18
|
25
|
25
|
32
|
25.4
|
32
|
|
T SLOTS IN RAM (mm)
|
16
|
16
|
16
|
18
|
25
|
25
|
25.4
|
32
|
|
H.P. REQUIRED
|
7.5 H.P.
|
10 H.P.
|
20 H.P.
|
30 H.P.
|
40 H.P.
|
50 H.P.
|
60 H.P
|
100 H.P
|
|
R.P.M
|
960
|
960
|
960
|
960
|
960
|
960
|
960
|
960
|
|
HEIGHT
|
9 ‘ – 4
|
10′ – 4″
|
12′ – 4″
|
14′ – 6″
|
15′ – 6″
|
17′
|
19′
|
21‘
|
