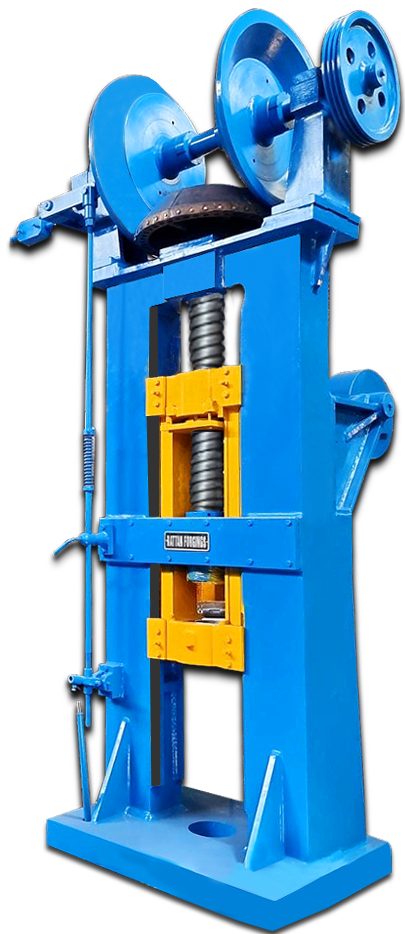

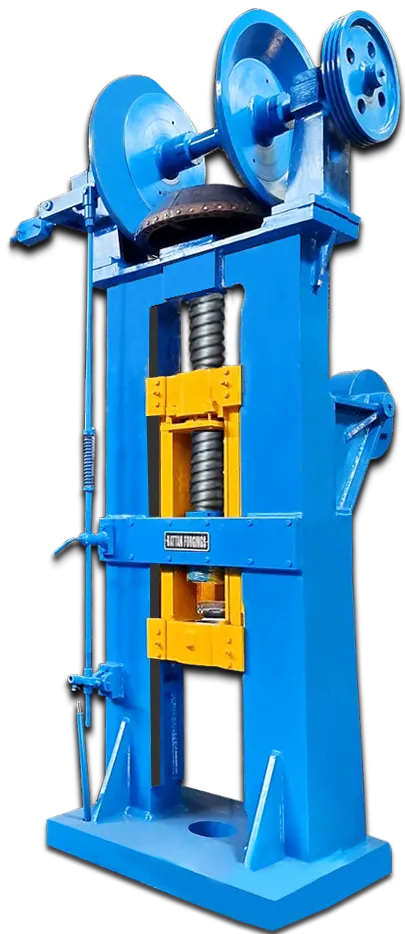

Forging Press (Up Stroke)
OUR PRODUCTS
FORGING PRESS (UP STROKE)
Abiding by the ethical norms of the industry, our organization is engaged in manufacturing.
Forging Presses are an answer for the Forging of Round, Square and Hexagonal Headed Bolts as well as for Nuts, Rivets, Motor Parts, Cycle Parts varieties of such other items. These presses are very simple in operation and their stroke can be achieved pressing a lever provided on the left hand column on the front of the Forging Press.
Patrons can avail from us a comprehensive array of Forging Presses as per their specific needs and specifications. Moreover, this range of Forging Presses is quality tested under the supervision of skilled manpower, which is well versed with the industry parameters and ensures delivery of a flawless range to patrons’ premises.
We Manufacture Friction Screw Presses from 50 Tones to 1000 Tones capacity.
FORGING PRESS (UP STROKE)
Specification of Forging Presses (Up Stroke)
MODEL
|
No. 3
|
No. 2
|
No. 1
|
No. 0
|
No. 00
|
CAPACITY
|
50 tons
|
100 tons
|
150 tons
|
250 tons
|
350 tons
|
DIA OF SCREW (mm)
|
3″
|
4″
|
5″
|
6″
|
7″
|
STROKE OF PRESS (mm)
|
15″
|
16″
|
20″
|
26″
|
32″
|
MAX. LENGTH OF JOB
|
8″
|
12″
|
16″
|
20″
|
26″
|
MAX. DIA OF JOB
|
1/2″
|
3/4″
|
1¼”
|
2″
|
2½”
|
STROKE PER MINUTE
|
50
|
40
|
30
|
25
|
20
|
FOUNDATION HOLES
|
24″x16″
|
31″x19″
|
25″x39″
|
41″x20″
|
43″x32″
|
H.P. REQUIRED
|
5 H.P.
|
7.5 H.P.
|
10 H.P.
|
20 H.P.
|
30 H.P.
|
R.P.M.
|
1440
|
1440
|
1440
|
1440
|
1440
|
HEIGHT
|
7″‘-6″
|
8″-6″
|
10″-6″
|
11″-6″
|
13″-6″
|
