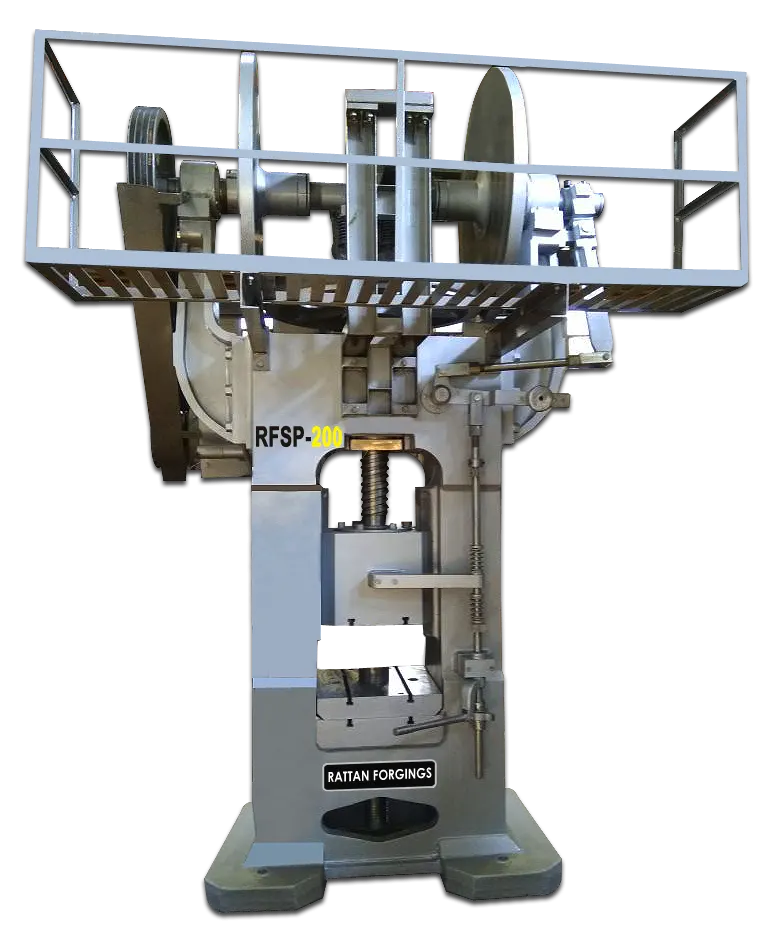

FRICTION SCREW PRESS (DOWN STROKE)

FRICTION SCREW PRESSES are used for Hot Forging of Steel, Brass, Aluminium and many other Alloy Steel. Since our inception, we are engaged in manufacturing a sophisticated array of Friction Screw Press, which are designed to be reliable, efficient and precise for Hot Forging of Steel, Brass, Aluminium to our esteemed clients. Depending upon the tooling employed on a press, it meets different needs of Non-Ferrous, Steel, Brass, Aluminium stamping’s, Hot Forgings and piercing operations. Our Friction Screw Press can be available in various customized options.

These Presses are being manufactured from 30 to 600 tones capacity. Their design’s beauty is that can give 1/2″ stroke with full press force. Moreover any type of ejection arrangements can be supplied along with press against specific requirements.

FRICTION-SCREW-PRESSES

FRICTION SCREW PRESSES (DOWN STROKE)



Specification of Friction Screw Presses (Down Stroke)

MODEL
RFSP-50
RFSP-100
RFSP-200
RFSP-300
RFSP-400
RFSP-500
CAPACITY  IN TONS
50
100
200
300
400
500
DIA OF SCREW (mm)
100
127
775
200
1155
280
STROKE OF PRESS (mm)
200
280
355
405
455
510
STROKE PER MINUTE
40
25
20
15
10
10
TABLE TO SLIDE (MAX.)
355
460
560
635
710
815
TABLE TO SLIDE (MIN.)
150
180
200
230
255
305
SIZE OF TABLE (FRONT) (mm)
380
480
560
635
710
760
SIZE OF TABLE (mm)
355
460
535
610
710
760
DISTANCE TABLE TO GUIDES (mm)
150
200
255
305
355
405
DISTANCE BETWEEN COLUMNS (mm)
405
510
585
660
760
815
DISTANCE BETWEEN GUIDES (mm)
305
355
430
480
560
610
BORE IN TABLE (mm)
75
100
125
150
150
150
BORE IN RAM (SHANK DIA)
40
50
60
75
75
100
DIMENSIONS OF RAM (mm)
305 X 305
355 X 355
430 X 430
480 X 480
535 X 535
610 X 610
T SLOTS IN TABLE (mm)
15
15
20
25
25
40
T SLOTS IN RAM (mm)
15
15
15
20
25
25
H.P. REQUIRED
7.5 H.P.
10 H.P.
20 H.P.
30 H.P.
40 H.P.
50 H.P.
R.P.M.
960
960
960
960
960
960
HEIGHT
9 ‘ –  4
10′  –  4″
12′  –  4″
14′  –  6″
15′ –  6″
17′
